Actor Class Reference

#include <actor.h>

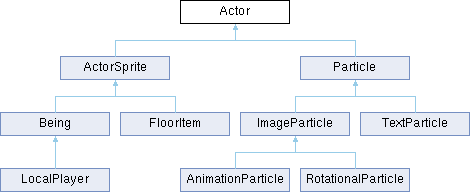

Inheritance diagram for Actor:

Public Member Functions
	Actor ()
virtual	~Actor ()
virtual bool	draw (Graphics *graphics, int offsetX, int offsetY) const =0
	Draws the Actor to the given graphics context.
const Vector &	getPosition () const
	Returns the pixel position of this actor.
virtual void	setPosition (const Vector &pos)
	Sets the pixel position of this actor.
int	getPixelX () const
	Returns the pixels X coordinate of the actor.
int	getPixelY () const
	Returns the pixel Y coordinate of the actor.
virtual int	getDrawOrder () const
	Returns the pixel Y coordinate that the actor should be drawn at.
virtual bool	drawnWhenBehind () const
	Determines wether the actor should be drawn translucent when behind another object.
virtual int	getTileX () const
	Returns the x coordinate in tiles of the actor.
virtual int	getTileY () const
	Returns the y coordinate in tiles of the actor.
virtual float	getAlpha () const =0
	Returns the current alpha value used to draw the actor.
virtual void	setAlpha (float alpha)=0
	Sets the alpha value used to draw the actor.
virtual void	setMap (Map *map)
Map *	getMap () const

Protected Attributes
Map *	mMap = nullptr
Vector	mPos
	Position in pixels relative to map.

Private Attributes
Actors::iterator	mMapActor

Detailed Description

Definition at line 34 of file actor.h.

Constructor & Destructor Documentation

Actor()

Actor::Actor ( )

default

~Actor()

Actor::~Actor ( )

virtual

Definition at line 27 of file actor.cpp.

Member Function Documentation

draw()

virtual bool Actor::draw ( Graphics *  graphics, int  offsetX, int  offsetY  ) const

pure virtual

Draws the Actor to the given graphics context.

Note: this function could be simplified if the graphics context would support setting a translation offset. It already does this partly with the clipping rectangle support.

Implemented in ActorSprite, FloorItem, ImageParticle, Particle, and TextParticle.

drawnWhenBehind()

virtual bool Actor::drawnWhenBehind ( ) const

inlinevirtual

Determines wether the actor should be drawn translucent when behind another object.

Reimplemented in Being, Particle, and TextParticle.

Definition at line 84 of file actor.h.

getAlpha()

virtual float Actor::getAlpha ( ) const

pure virtual

Returns the current alpha value used to draw the actor.

Implemented in ActorSprite, and Particle.

getDrawOrder()

virtual int Actor::getDrawOrder ( ) const

inlinevirtual

Returns the pixel Y coordinate that the actor should be drawn at.

Reimplemented in ActorSprite, and TextParticle.

Definition at line 77 of file actor.h.

getMap()

Map * Actor::getMap ( ) const

inline

Definition at line 109 of file actor.h.

getPixelX()

int Actor::getPixelX ( ) const

inline

Returns the pixels X coordinate of the actor.

Definition at line 65 of file actor.h.

getPixelY()

int Actor::getPixelY ( ) const

inline

Returns the pixel Y coordinate of the actor.

Definition at line 71 of file actor.h.

getPosition()

const Vector & Actor::getPosition ( ) const

inline

Returns the pixel position of this actor.

Definition at line 53 of file actor.h.

getTileX()

int Actor::getTileX ( ) const

virtual

Returns the x coordinate in tiles of the actor.

Reimplemented in Being, and FloorItem.

Definition at line 45 of file actor.cpp.

getTileY()

int Actor::getTileY ( ) const

virtual

Returns the y coordinate in tiles of the actor.

Reimplemented in Being, and FloorItem.

Definition at line 50 of file actor.cpp.

setAlpha()

virtual void Actor::setAlpha ( float  alpha )

pure virtual

Sets the alpha value used to draw the actor.

Implemented in ActorSprite, and Particle.

setMap()

void Actor::setMap ( Map *  map )

virtual

Reimplemented in Being, and ActorSprite.

Definition at line 32 of file actor.cpp.

setPosition()

virtual void Actor::setPosition ( const Vector &  pos )

inlinevirtual

Sets the pixel position of this actor.

Reimplemented in Being.

Definition at line 59 of file actor.h.

Member Data Documentation

mMap

Map* Actor::mMap = nullptr

protected

Definition at line 113 of file actor.h.

mMapActor

Actors::iterator Actor::mMapActor

private

Definition at line 117 of file actor.h.

mPos

Vector Actor::mPos

protected

Position in pixels relative to map.

Definition at line 114 of file actor.h.

---

The documentation for this class was generated from the following files:

• src/actor.h
• src/actor.cpp
