Tab Class Reference

A tab, the same as the Guichan tab in 0.8, but extended to allow transparency. More...

#include <tab.h>

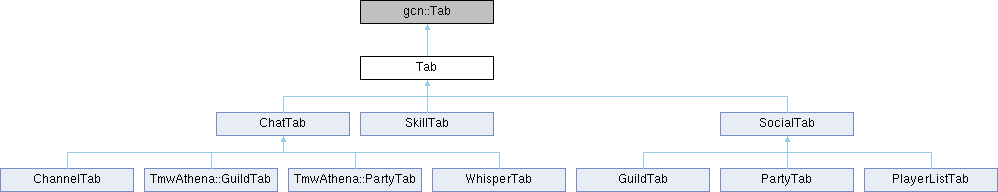

Inheritance diagram for Tab:

Public Member Functions
	Tab ()
void	setCaption (const std::string &caption)
	Sets the caption of the tab.
void	draw (gcn::Graphics *graphics) override
	Draw the tab.
void	drawFrame (gcn::Graphics *graphics) override
	Draw the tab frame.
void	setTabColor (const gcn::Color *color)
	Set the normal color fo the tab's text.
void	setFlash (bool flash)
	Set tab flashing state.

Protected Member Functions
virtual void	setCurrent ()

Private Attributes
const gcn::Color *	mTabColor = nullptr
bool	mFlash = false
int	mPadding = 8

Friends
class	TabbedArea

Detailed Description

A tab, the same as the Guichan tab in 0.8, but extended to allow transparency.

Definition at line 32 of file tab.h.

Constructor & Destructor Documentation

Tab()

Tab::Tab

(

)

Definition at line 34 of file tab.cpp.

Member Function Documentation

draw()

void Tab::draw ( gcn::Graphics *  graphics )

override

Draw the tab.

Definition at line 61 of file tab.cpp.

drawFrame()

void Tab::drawFrame ( gcn::Graphics *  graphics )

override

Draw the tab frame.

Definition at line 104 of file tab.cpp.

setCaption()

void Tab::setCaption

(

const std::string &

caption

)

Sets the caption of the tab.

Shadowing gcn::Tab::setCaption, which shouldn't be used because it calls gcn::Tab::adjustSize, which does not take into account the padding.

Definition at line 49 of file tab.cpp.

setCurrent()

virtual void Tab::setCurrent ( )

inlineprotectedvirtual

Reimplemented in ChatTab.

Definition at line 66 of file tab.h.

setFlash()

void Tab::setFlash

(

bool

flash

)

Set tab flashing state.

Definition at line 122 of file tab.cpp.

setTabColor()

void Tab::setTabColor

(

const gcn::Color *

color

)

Set the normal color fo the tab's text.

Definition at line 117 of file tab.cpp.

Friends And Related Symbol Documentation

TabbedArea

friend class TabbedArea

friend

Definition at line 65 of file tab.h.

Member Data Documentation

mFlash

bool Tab::mFlash = false

private

Definition at line 70 of file tab.h.

mPadding

int Tab::mPadding = 8

private

Definition at line 71 of file tab.h.

mTabColor

const gcn::Color* Tab::mTabColor = nullptr

private

Definition at line 69 of file tab.h.

---

The documentation for this class was generated from the following files:

• src/gui/widgets/tab.h
• src/gui/widgets/tab.cpp
